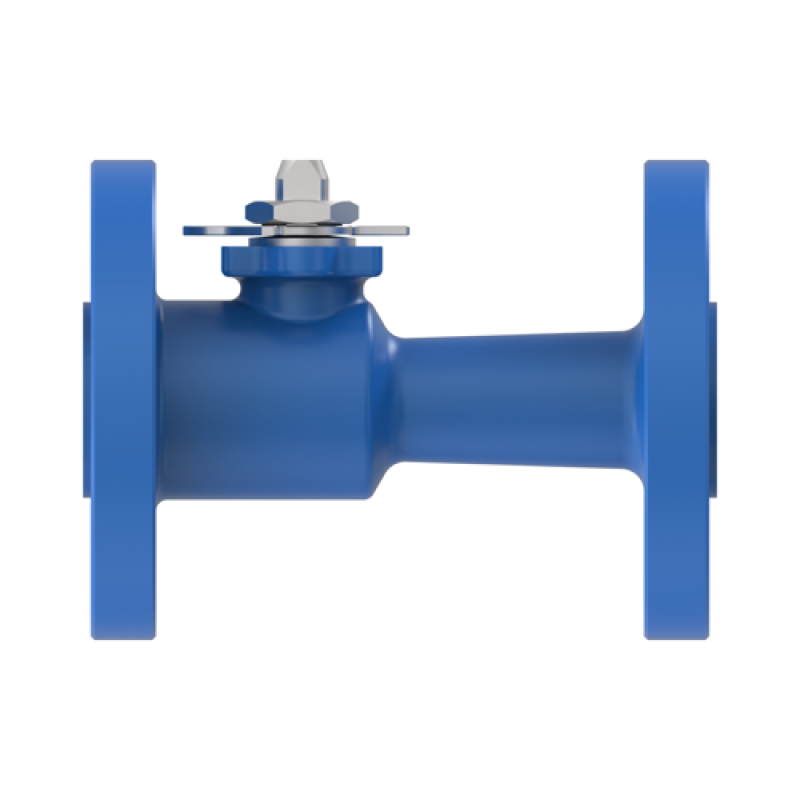

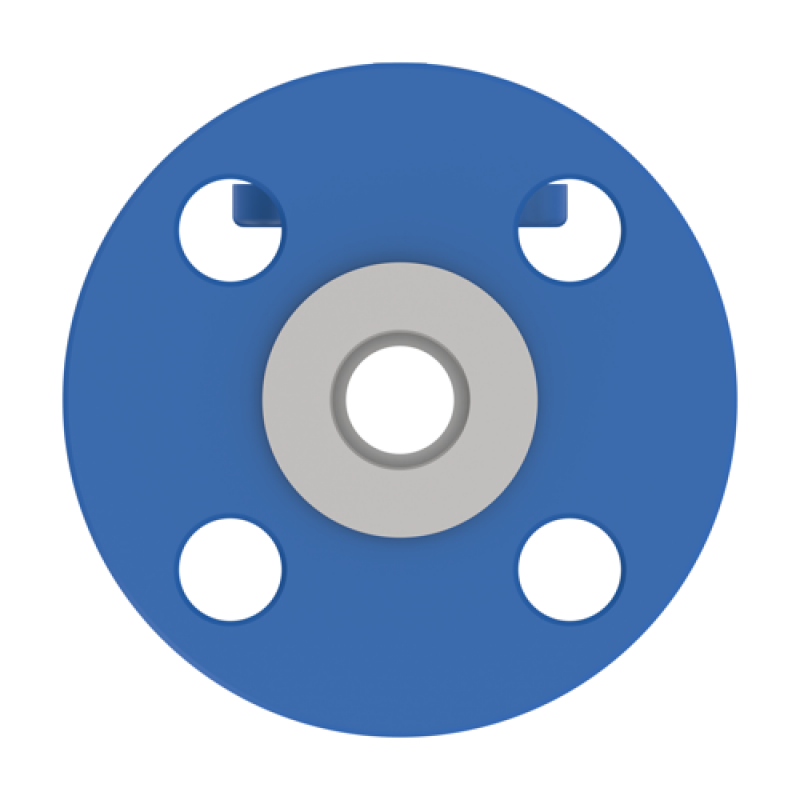

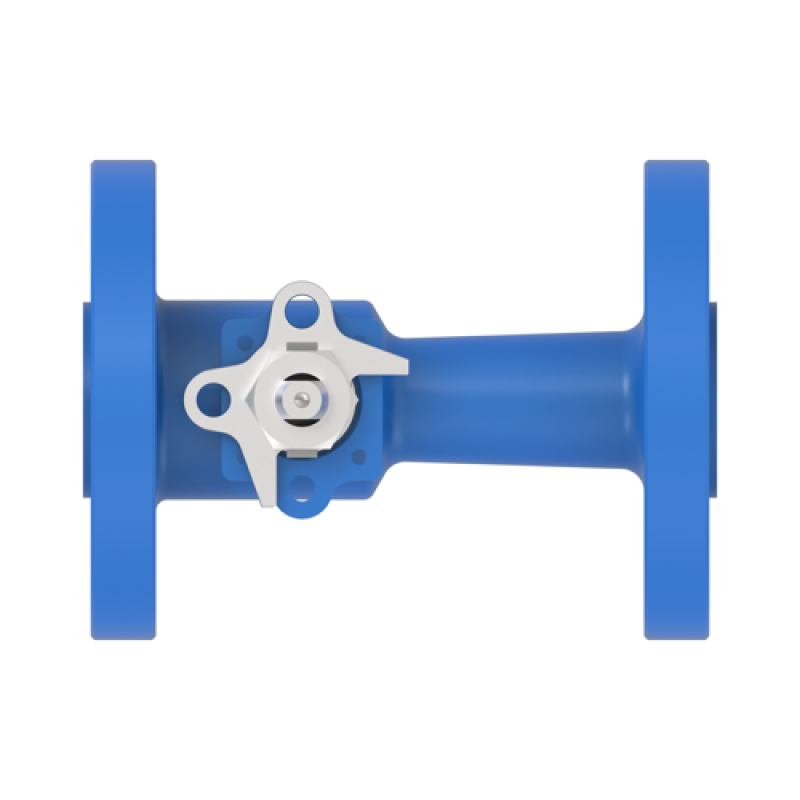

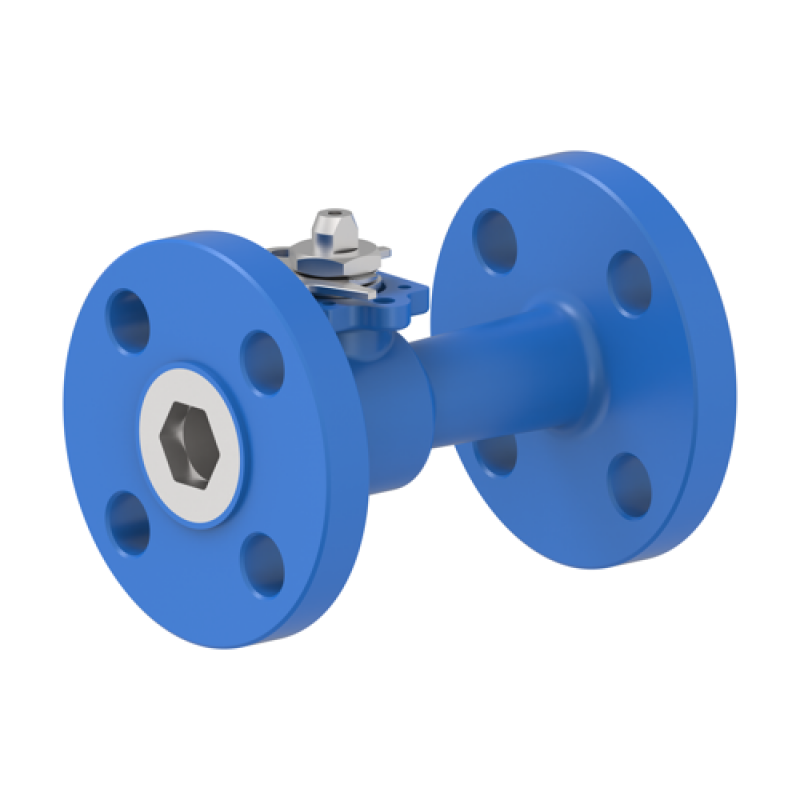

76 FBV 1PC Reduced Port Class 300 :

View 3D Model
DOWNLOAD REQUEST QUOTE
Delval Flow Controls provides a wide range of quality products with the reliability you can count on. Our designs are based on industry requirements and our customers' feedback. All Series 75/76 ball valves are manufactured in ISO 9001 certified facilities with a robust quality management system and in conformance to ASME B16.34 and API 608 specifications.
  • Solid, one-piece ball
  • Top plate drilled to ISO 5211 bolt circle dimensions
  • Contoured seat design with no seat extrusion
  • Fully adjustable packing gland with actuator mounted
  • Live loaded graphite stem packing
  • Robust stem provides real blowout proof design
  • Anti-static device between ball-to-stem and stem to-body connection
  • Self relieving seats as standard
