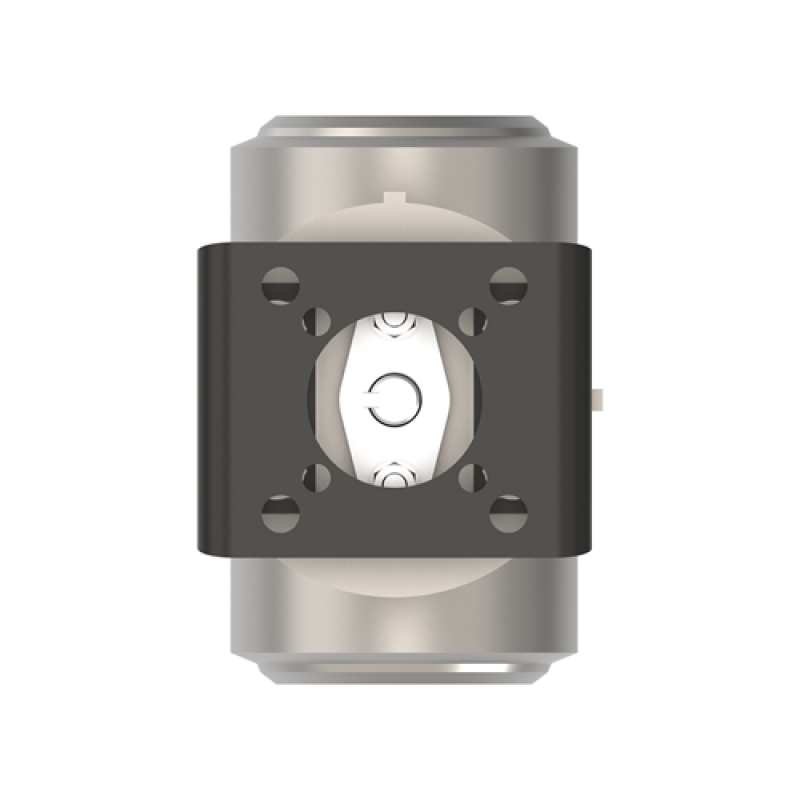

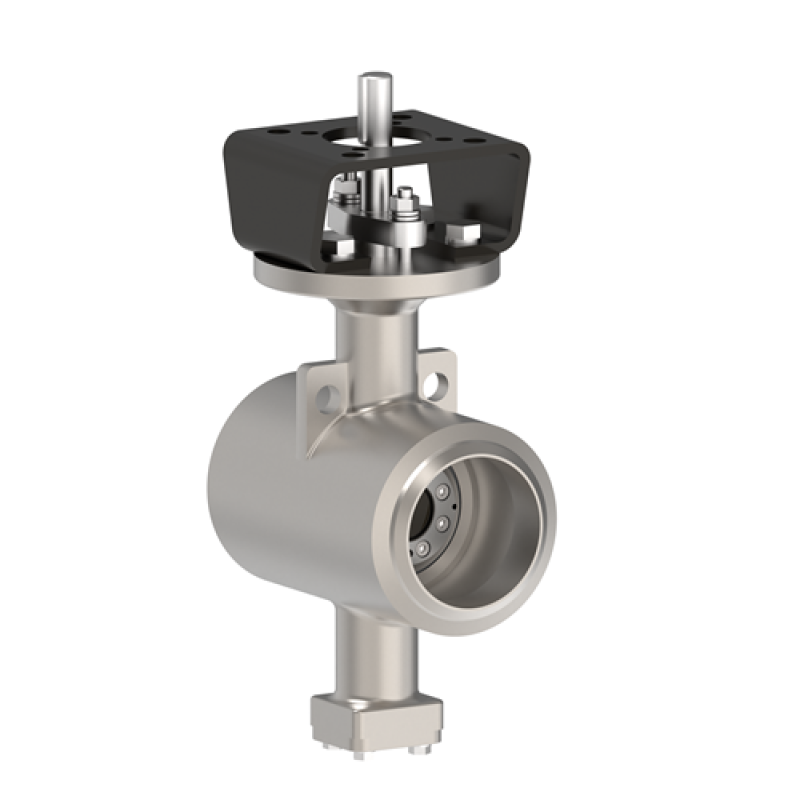

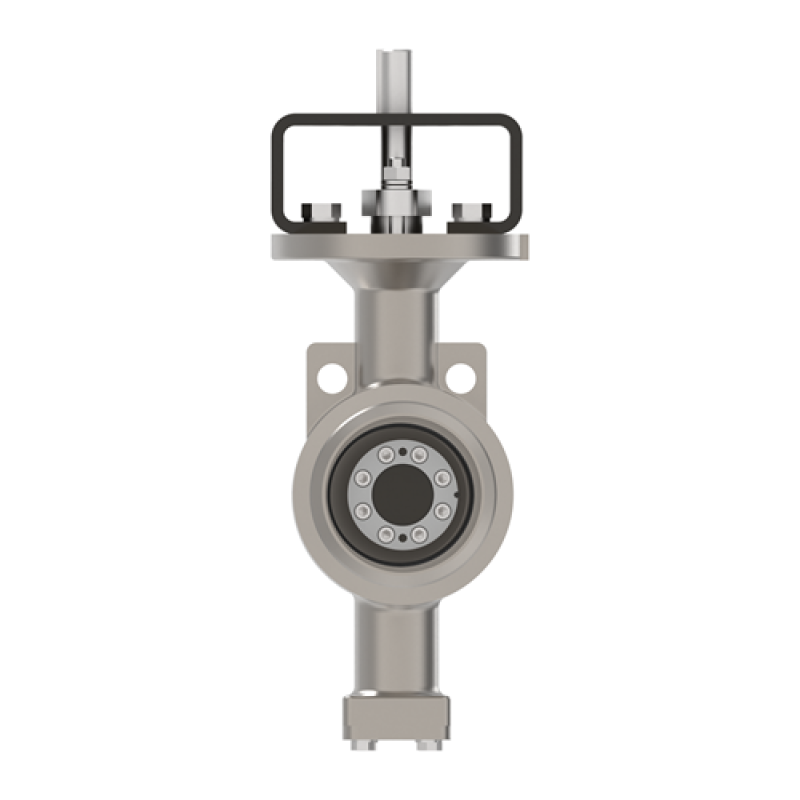

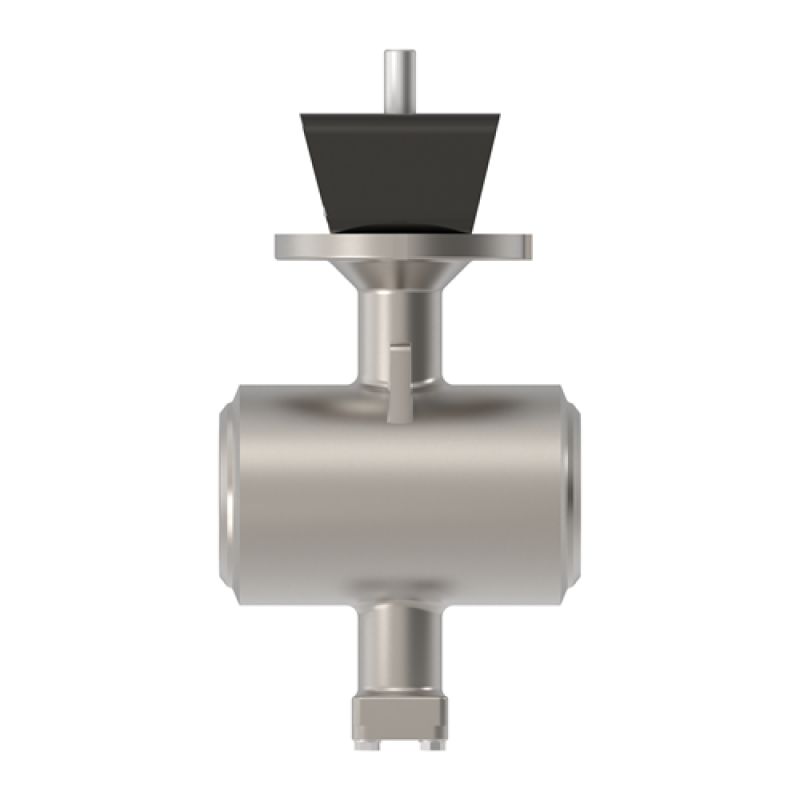

TriO Triple Offset Valve :

View 3D Model
DOWNLOAD REQUEST QUOTE
  • Fire Safe : API 607
  • Fugitive Emission : ISO 15848 / API 641
  • CE compliance : 2014/68/EU (PED)
  • ATEX
  • EAC
  • ABS
  • WRAS
  • CRN
  • SIL
  • IBR
  • NSF 61
  • NSF 372

Delval TriO® Triple Offset Valves

  • Design : API 609, ASME B16.34, BS EN 593, MSS SP - 68
  • Face to Face : API 609, ISO 5752, BS EN 558, MSS SP - 68
  • Testing : API 598, ISO 5208, EN 12266, MSS SP - 68
  • Pressure Temperature : ASME B16.34
  • Flange Accommodation : ASME B16.5, ASME B16.47, BS EN 1092-1, AWWA C207
  • Butt Weld Ends : ASME B16.25
  • NACE : MR0175 / ISO 15156
  • Body Style : Wafer, Lug, Double Flanged (Short / Long pattern), and Butt Weld End
  • Rating : Class 150 to Class 900
  • Temp Range : -20°F to 800°F (-29°C to 425°C) – Standard, -320°F to 1290°F (-196°C to 700°C) – Optional
  • Size Range : NPS 3 to NPS 102 (DN 80 to DN 2550)
  • Cryogenic : Extended stem and bonnets can be offered for low temperature and cryogenic applications. The design for extended stem and bonnet conforms to BS 6364.
  • High Temperature : Valves are available with stem extensions and fins for high temperature applications.
  • Steam Jackets : Steam jacketed valves are available for applications where the media tends to crystallize when cooled down.
  • Valve with Stem Extension : Valve with Stem extension up to 10m, can be offered for buried service and partially submerged in seawater.
